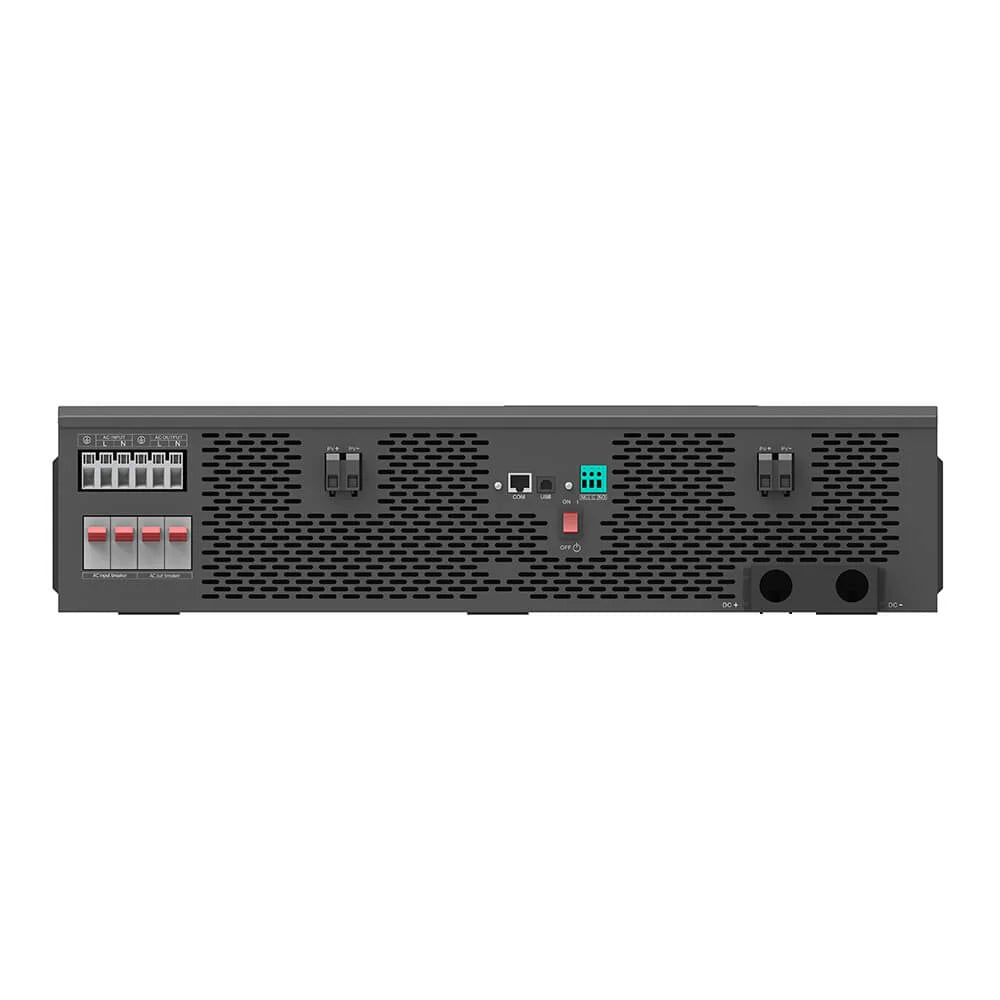

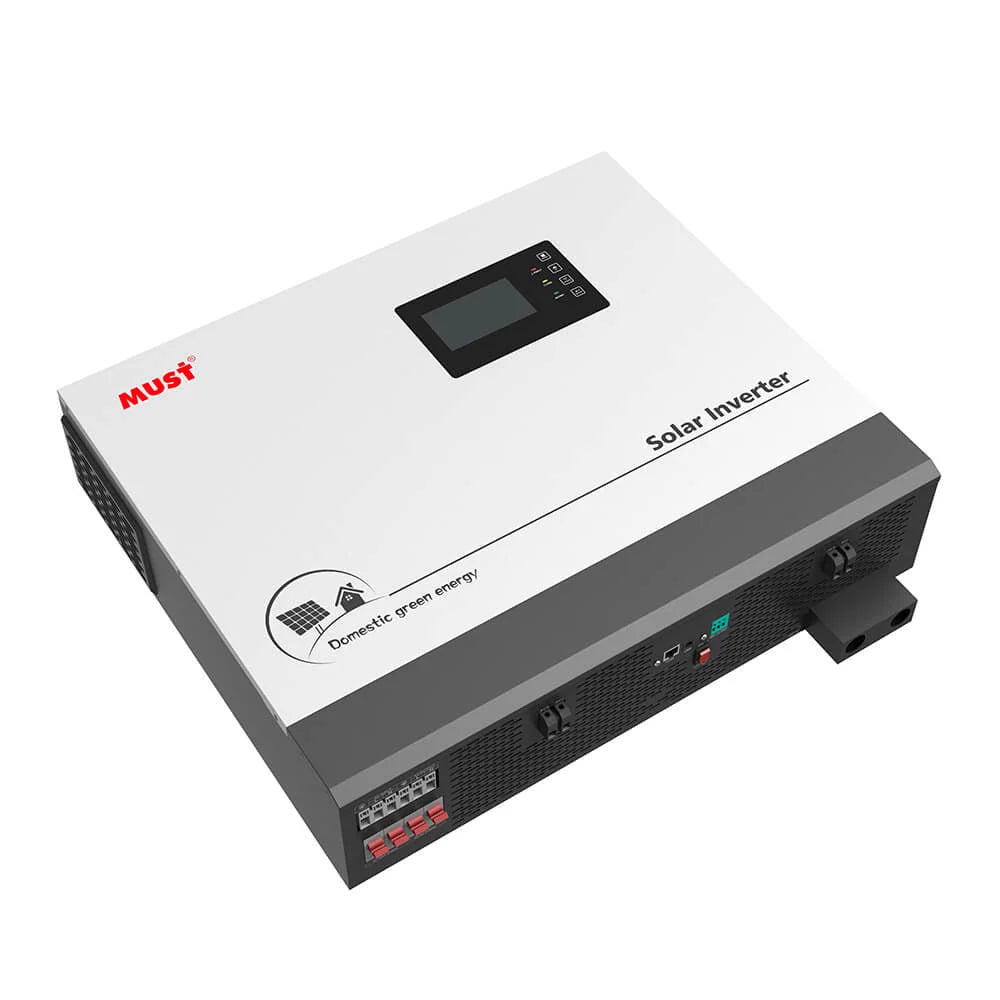

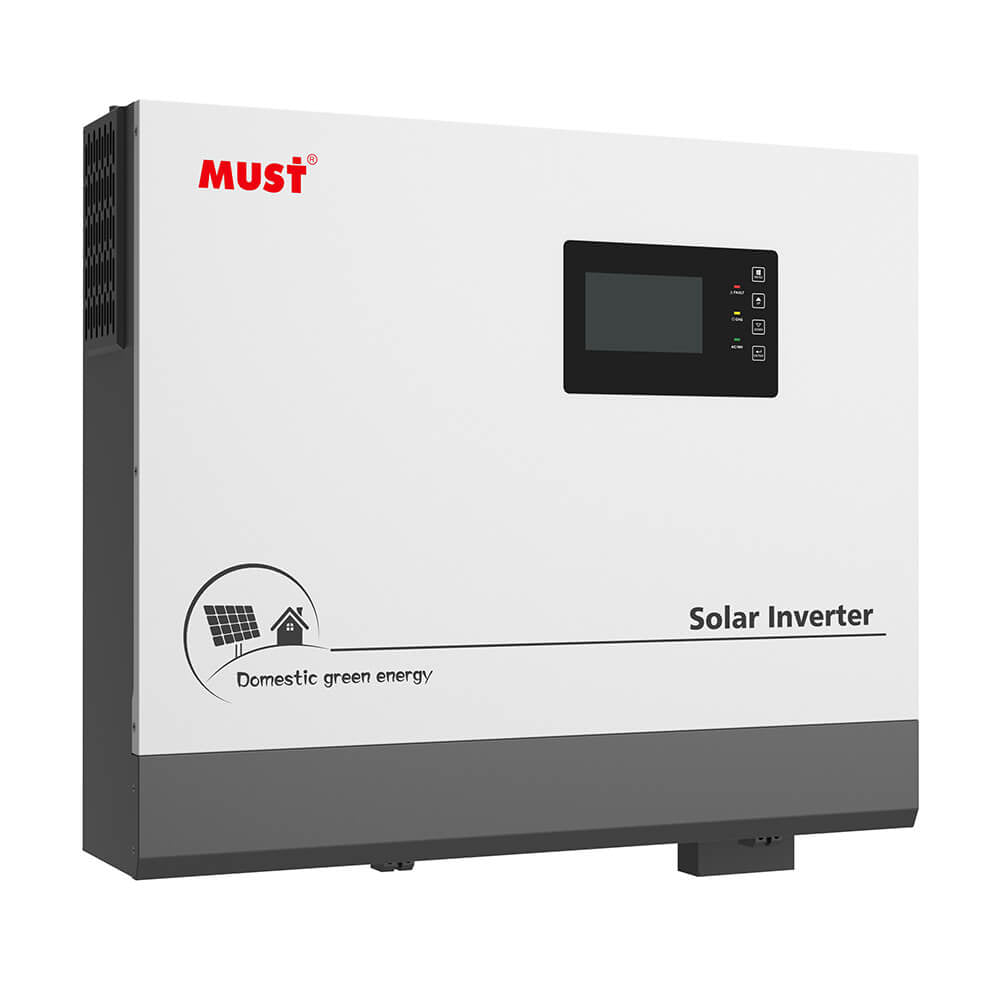

PV1800 Series High Frequency Off Grid Solar WIFI Inverter 10kva
Sale price
R 7,449.99
Regular price
R 14,900.00
Reliable shipping
Flexible returns
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Key Features
- Pure sine wave inverter
- 160A MPPT solar charger
- Auto restart while AC is recovering
- Overload/ Over temperature/ short circuit protection
- High Frequency
- wifi monitoring ( WiFi logger sold separately - 799 )
Product Details
• Pure sine wave inverter • Configurable input voltage range for home appliances and personal computers via LCD setting • Configurable battery charging current based on applications via LCD setting • Configurable AC/Solar Charger priority via LCD setting • Compatible to mains voltage or generator power • Auto restart while AC is recovering • Overload/ Over temperature/ short circuit protection • Smart battery charger design for optimized battery performance • Cold start function
Expand
Specifications
Rated Power 10KW
Surge Power 20KW
Nominal Battery System Voltage48VDC
WaveformPure Sine Wave
AC Voltage Regulation (Batt.Mode)230VAC±5%
Output Frequency60Hz or 50Hz
Inverter Efficiency(Peak)93%
Transfer Time10ms (UPS) 20ms (APL)
Nominal AC Input Voltage230VAC
Max AC Input Voltage300VAC
Selectable Voltage Range170~280VAC (UPS) / 90~280VAC (APL) / 184~253VAC(VDE4105)
Frequency Range50Hz / 60Hz(Auto detection)
Maximum PV Array Open Circuit Voltage145VDC
PV Array Open Circuit Voltage60-130VDC
Cold Start Voltage46.0VDC
Solar Charging Current160A
Maximum Charge Current280A
Charging Algorithm3-step (Flooded Battery / AGM / GEL/ LEAD Battery), 4-step(LI)
